View ResultsΒΆ

View runs

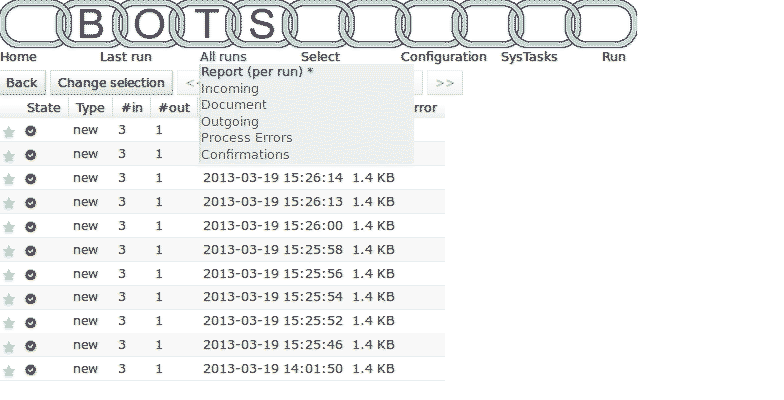

For each run of bots-engine you can see the results in bots-monitor->All runs->Reports (per run):

../_images/Myfirst_runs.png

If you go to the star in front of a line, a drop-down menu appears where you can zoom in on the results of the run.

Incoming

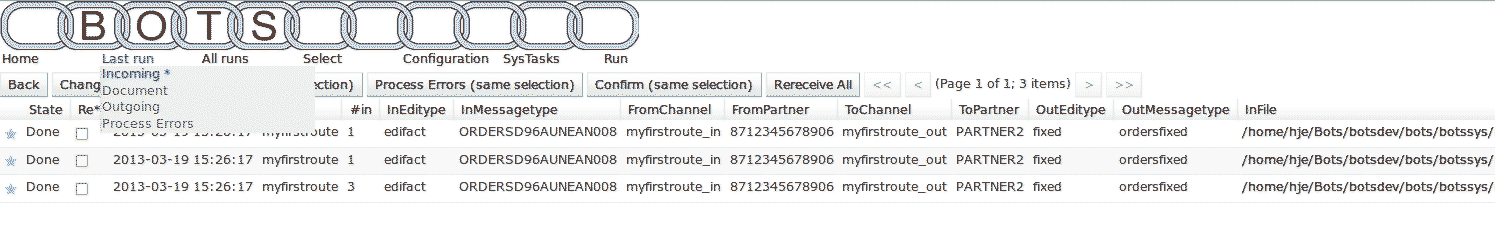

Incoming files of the last run can be viewed via bots-monitor->Last run->Incoming:

../_images/Myfirst_incoming_last_run.png

View all incoming files via bots-monitor->All runs->Incoming:

../_images/Myfirst_incoming_all.png

By using the ‘Change selection’ button you can change the selection criteria for the view. By clicking a filename you can view the contents of that file.

Outgoing

The outgoing files of the last run can be viewed via bots-monitor->Last run->Outgoing:

../_images/Myfirst_outgoing_last_run.png

By clicking a filename you can view the contents of that file.

Detail Screen

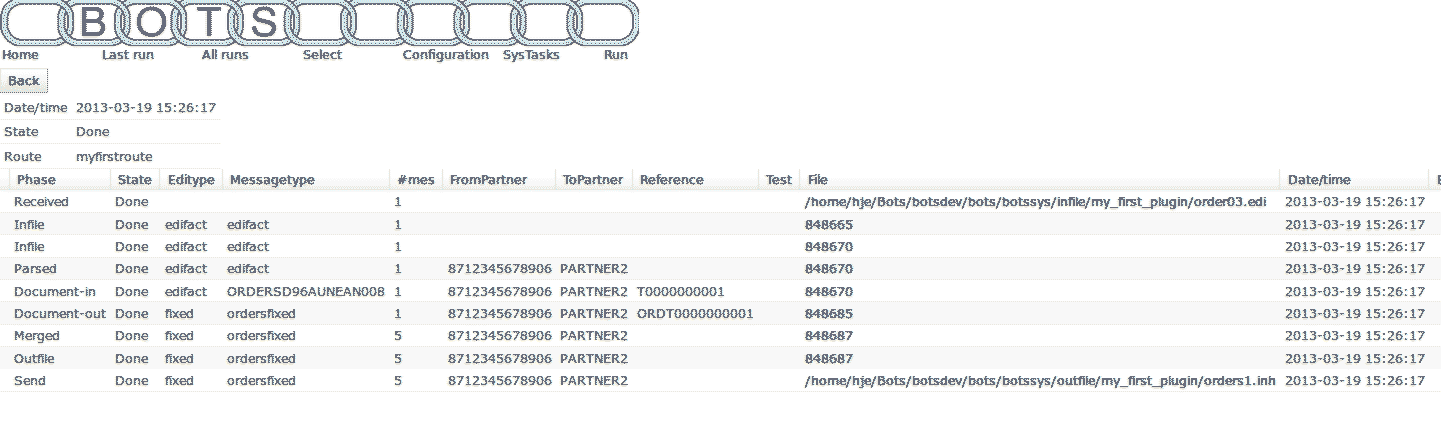

When you are in the incoming screen and go to the star in front of a line, a drop-down menu appears where you can zoom in on the details of the processing of the incoming file:

../_images/Myfirst_details.png

Here the detailed steps in processing an incoming file are shown.
